Metal Roofing and Siding Information and Prices for Panel-Loc Plus™
Need Professional Help Figuring your Metal Roof or Siding Project?
We can Help, Give us a call 269-683-2723
29 Gauge
Lifetime-Painted
Panel-Loc Plus™
$126.00 Per Square
$3.99 Per Linear Ft
With DripX™
$177.00 Per Square
$5.61 Per Linear Ft
26 Gauge
Lifetime-Painted
Panel-Loc Plus™
$148.00 Per Square
$4.75 Per Linear Ft
With DripX™
$195.94 Per Square
$6.21 Per Linear Ft
40 Year Painted
Panel-Loc Plus™
Value Panel
$112.10 Per Square
$3.55 Per Linear Ft

Great for Projects
on a budget!
Panel-Loc Plus™ Metal Roofing and Siding is ideal for residential, agricultural, and light commercial projects. Available in 29 and 26 gauge. Panel-Loc Plus™, with the Central Guard® Paint System that provides a timeless attractive appearance and lasting durable performance with a Limited Lifetime Paint Warranty. Panel-Loc Plus™ is also available with the DripX™ Condensation Control System Option. Other available finish options for Panel-Loc Plus™ are Galvalume® 26 and 29 gauge and 29 gauge 40-Year Painted
Need to Figure the Metal Roofing, Siding and Trim for your new Home, Pole Building or Work Shop? Want to see what it would cost to put new metal on the old barn? YOU CAN RIGHT HERE Using our Panel-Loc Plus™ Metal Roofing and Siding Estimator for an instant estimate on-line. It's Fast, It's Easy and it's FREE to use. CLICK HERE
For Ordering, Questions and Help Estimating
 Feel free to call us at (269) 683-2723.
Monday through Thursday 8:00 a.m. to 6:30 p.m. EST
Friday 8:30 a.m. to 4:30 p.m.
Saturday 9:00 a.m. to 12:00 p.m.
 Fax: (269) 683-3287
 Use our message form to: Send Michiana Building Supplies a Message
CLICK HERE - To pop-open the Panel-Loc Plus™ Color Chart PDF.

Panel-Loc Plus™ Features

20 Year Substrate Warranty PDF
Click To View

Central Guard™ Paint Warranty PDF
Click To View
 Limted Lifetime Paint Warranty using the Central Guard™ paint system technology.
 20-year Galvalume® Substrate Warranty.
 Optional DripX™ Condensation Control Panel Backing Available.
 Class A fire resistance.

Panel-Loc Plus™ Flyer
Click to View
 Full hard, 26- and 29-gauge steel manufactured to industry specifications. Producing a minimum tensile strength of 80,000 PSI.
 Class 4 impact resistance, withstanding the most severe weather, including ice, driving wind, and heavy snow.

Panel-Loc Plus™ Color Chart PDF
 Available in 21 colors and Bare Galvalume®.

Siphon Groove
 Employs our state-of-the-art siphon groove, a drain channel that guards against wind, rain, and snow; eliminating leaks. The siphon groove on the underlap of the panel interlocks with the overlap of the next panel, adding strength to the purlin bearing rib. This design permits free-flow water runoff while channeling out any water that might be forced into the snug-fitting lap.
DripX™
Condensation Control System
DripX™ is a factory-applied backer material that controls condensation. When temperature and humidity
DripX™ Flyer PDF
Click To View
conditions reach the dew point, moisture condenses on the underside of a metal roof and forms drops of water, which can rain down on anything below it causing serious damage and irritation. Roof panels with DripX™ applied have a medium for trapping this moisture in the pockets formed in the membrane material. DripX™ holds moisture until conditions go back above the dew point, and the condensation is released back into the air in the form of natural humidity.
 Anti-microbial material, WON'T mold or mildew
 Appropriate for use in animal confinement.
 UL Fire Rated
 Noise reduction - up to 20% of rain noise and reflective noise (echo)
 Holds up to 10 times its weight in water, more than 1 quart per 10 square feet
 Eliminates the need for Vapor Barrier, saving time and reducing costs.

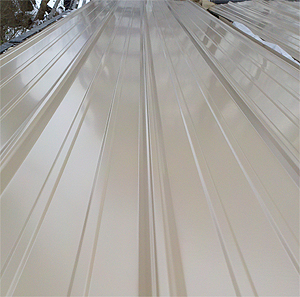

Panel-Loc Plus™ Profile
Help with Measuring

   When ordering your steel package you will need to provide a few key measurements. Here are drawings that help with measuring.
To view the drawings in a Web Page - CLICK HERE
To view the drawings as a PDF file - CLICK HERE
Trim Use Drawings

   Here are drawings that show how steel trim is generally installed.
To view the drawings in a Web Page - CLICK HERE
To view the drawings as a PDF file - CLICK HERE
Panel-Loc Plus™ Installation Guide


Panel-Loc Plus™ installation Guide PDF - CLICK HERE
Panel-Loc Plus™
Product Guide


Panel-Loc Plus™ Product Guide PDF - CLICK HERE

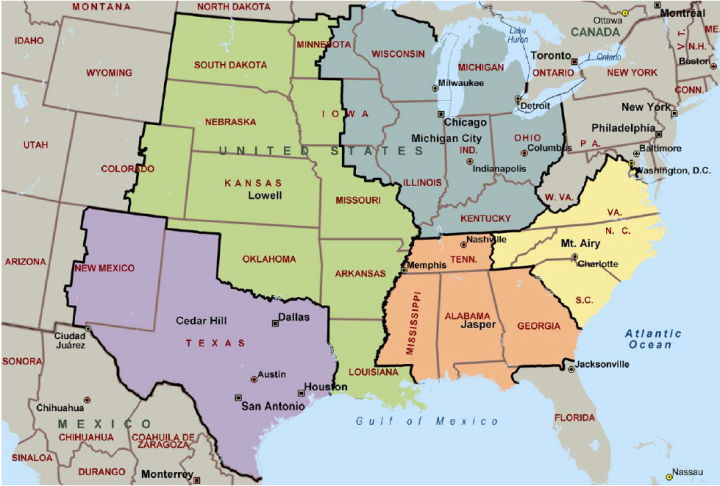

Panel-Loc Plus™ Delivery Coverage Area
If your job site is out side the delivery area, please check out or Imperial Rib Panel available Nation Wide - CLICK HERE
DELIVERY CHARGES NOT INCLUDED:  We at Michiana Building Supplies make every effort to keep delivery charges reasonable and competitive. Deliveries are primarily made by flat-bed semi truck. Boom and fork-lift off loading is available in select areas for an additional charge. Delivery charges are based on order size, delivery location and job-site accessibility. We always disclose delivery charges before you place your order.

We also accept
Checks By Fax®
Enery Star Metal Roofing & Siding Is 100% Recyclable!
Back to Top
Prices Posted February 2024
